3M™ Industrial Sealing Tape IS1 provides an easy sealing method that creates a moisture barrier under panels or where rivets, screws, or nails are present in automotive, specialty vehicle, electronic and heating, ventilation, and cooling (HVAC), and wind energy applications. This conformable tape is engineered with a waterproof membrane and acrylic adhesive that helps protect interior environments from leakage at joints, including panels, floors, trim, and frames, by sealing around the fastener for a secure seal. Designed for reliability, the product provides an easy-to-use and effective alternative to slow-curing and messy liquid sealants while offering robust adhesion that sticks to most substrates. Because of the versatility of the tape, it can be applied in temperatures as low as -18 °C (0 °F) with an operating temperature range of -40 °C to 116 °C (-40 °F to 240 °F). 3M™ Industrial Sealing Tape IS1 excels in water leak prevention, including sealing around RV windows, automotive frames, interior joints in HVAC systems, the tops of electrical enclosures, and more. For a tight water seal, explore the sealing potential of this tape in your next industrial application.

Identification

3M ID: 7100377266
old 3M ID: 70011146084
Distribution Chain Material Status Code: 10
Division Name: Industrial Adhesives & Tapes
Commodity Class Code: 2730
Product Type: Fita de vedação
Brand: 3M™
Commodity Class Description: Engineered Industrial Tapes

Marketing Content

Product Name: 3M™ Industrial Sealing Tape IS1, White, 1524 mm x 32.9 m
Description: 3M™ Industrial Sealing Tape IS1 provides an easy sealing method that creates a moisture barrier under panels or where rivets, screws, or nails are present in automotive, specialty vehicle, electronic and heating, ventilation, and cooling (HVAC), and wind energy applications. This conformable tape is engineered with a waterproof membrane and acrylic adhesive that helps protect interior environments from leakage at joints, including panels, floors, trim, and frames, by sealing around the fastener for a secure seal. Designed for reliability, the product provides an easy-to-use and effective alternative to slow-curing and messy liquid sealants while offering robust adhesion that sticks to most substrates. Because of the versatility of the tape, it can be applied in temperatures as low as -18 °C (0 °F) with an operating temperature range of -40 °C to 116 °C (-40 °F to 240 °F). 3M™ Industrial Sealing Tape IS1 excels in water leak prevention, including sealing around RV windows, automotive frames, interior joints in HVAC systems, the tops of electrical enclosures, and more. For a tight water seal, explore the sealing potential of this tape in your next industrial application.

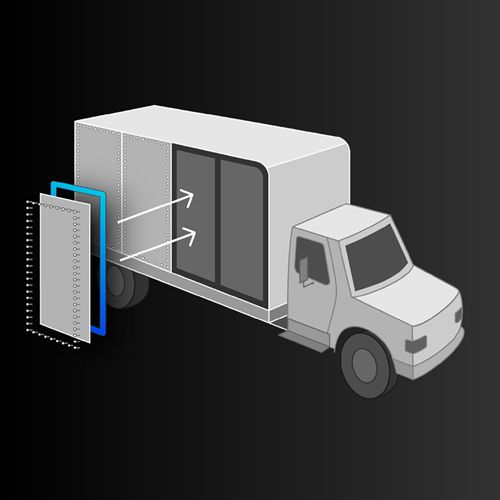

Long Description: 3M™ Industrial Sealing Tape IS1 is part of a family of products that offer the ultimate solution in water leak prevention, combining performance with the speed of a pressure-sensitive tape application. Its construction allows for dependable adhesion to complex shapes and a variety of surfaces — and when driven through by rivets, screws, and other fasteners, the tape locks in a water-tight seal. Offering high-tack adhesion with minimal surface preparation, 3M™ Industrial Sealing Tape IS1 forms an aggressive bond on various surface types, including fiberglass, metal, painted surfaces, plastics, wood, polystyrene, and more. This innovative product provides high-performance results, even during cold-weather months, allowing for continuous production throughout the year.
Application: Automóvel Eletrodomésticos Equipamentos eletrónicos Exército e governo Indústria geral Indústria metalúrgica Transportes Veículos especializados

Benefits

• RELIABLE WATER PROTECTION: Engineered with a waterproof membrane and acrylic adhesive that helps protect interior environments from leakage at critical joining areas
• ENDURES VARYING TEMPERATURES: Can be applied in temperatures as low as -18 °C (0 °F) with an operating temperature range of -40 °C to 116 °C (-40 °F to 240 °F)

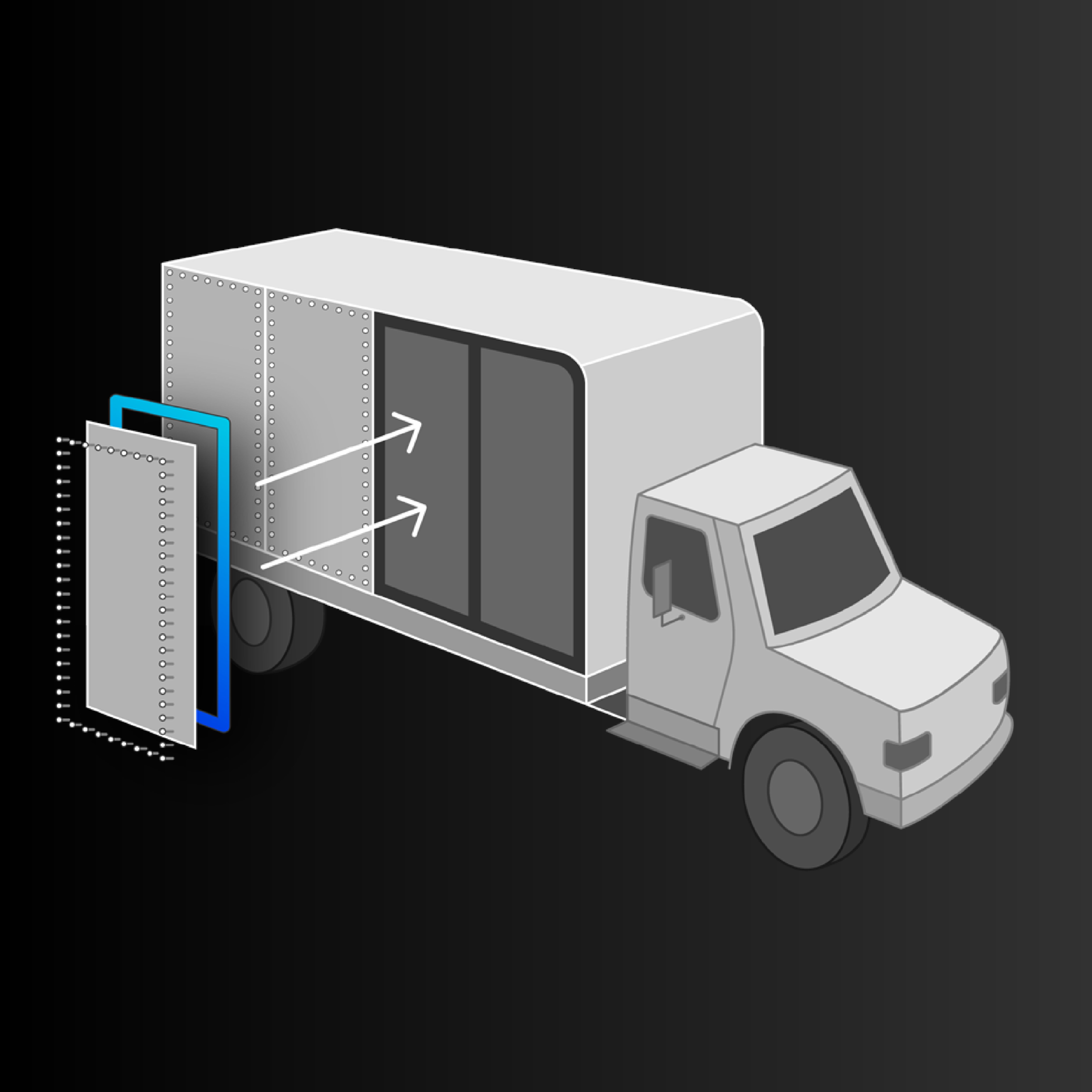

• FASTENER SEALABILITY: Securely seals around rivets, screws, staples, and nails to prevent moisture intrusion
• AGGRESSIVE ADHESIVE: Forms a strong bond on various surface types, including anodized aluminium, galvanized metal, fiberglass, plywood, and more
• HIGHLY CONFORMABLE: Designed with a thin, flexible backing that can fit in between panels and tight spaces
• DIVERSE INDUSTRIES: Excels in water leak prevention in automotive, specialty vehicle, HVAC, wind energy, and signage
• SPEEDS UP PRODUCTION: Offers an easy-to-use and effective alternative to slow-curing and messy liquid sealants
Keywords: 3M, fita de vedação industrial, vedação contra umidade, barreira de umidade, fita impermeável, adesivo acrílico, proteção contra vazamentos, encaixe de painéis, vedação em veículos, vedação eletrônica, vedação HVAC, vedação em energia eólica, adesão robusta, vedação em janelas de RV, vedação automotiva, união interna em sistemas HVAC, vedação em invólucros elétricos, aplicação industrial, proteção contra água, durabilidade em temperaturas variáveis, vedação em rebites e parafusos, adesivo agressivo, superfícies complexas, compatibilidade com alumínio anodizado, metal galvanizado, fibra de vidro, madeira compensada, alta conformabilidade, vedação eficiente, produtividade acelerada, alternativa aos selantes líquidos, aplicação fácil, variedade de larguras de fita, adesão em superfícies diversas, adesão de alto tack, vedação eficaz em climas frios, produção contínua

Technical Attributes

Product Color: Branco
Overall Length (Metric): 32.918 m

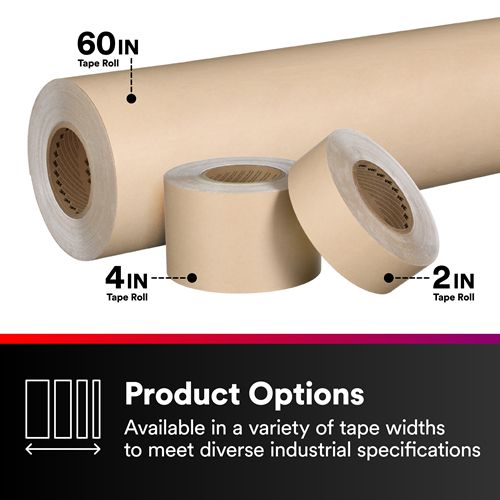

Overall Width (Metric): 1524.0 mm
Dangerous Goods Indicator: ZND
Indoor/Outdoor: Ambos
EU Taric Code: 3919908099

Industry Standards

eCl@ss 10 classification group: 23330202
eCl@ss 11 classification group: 23330202
ETIM Class 10.0: EC000128
ETIM Class 8.0: EC000128
ETIM Class 9.0: EC000128

Attributes 1

Adhesive Type: Acrílico
Application: Automóvel Eletrodomésticos Equipamentos eletrónicos Exército e governo Indústria geral Indústria metalúrgica Transportes Veículos especializados
Application Method: Pressure-sensitive Adhesive
Backing (Carrier) Material: Multilayer Elastomeric Film

Attributes 3

Core Size (Imperial): 3.0 Inch
Core Size (Metric): 76.2

Attributes 4

Flame Resistant: No

Attributes 5

Indoor/Outdoor: Ambos

Attributes 7

Maximum Operating Temperature (Celsius): 116.0
Maximum Operating Temperature (Fahrenheit): 240.0 Degree Fahrenheit
Minimum Operating Temperature (Celsius): -40.0
Minimum Operating Temperature (Fahrenheit): -40.0

Attributes 8

Number of Adhesive Sides: Single-sided

Attributes 9

Overall Length (Imperial): 36.0 yd
Overall Length (Metric): 32.918 m
Overall Width (Imperial): 60.0 in
Overall Width (Metric): 1524.0 mm

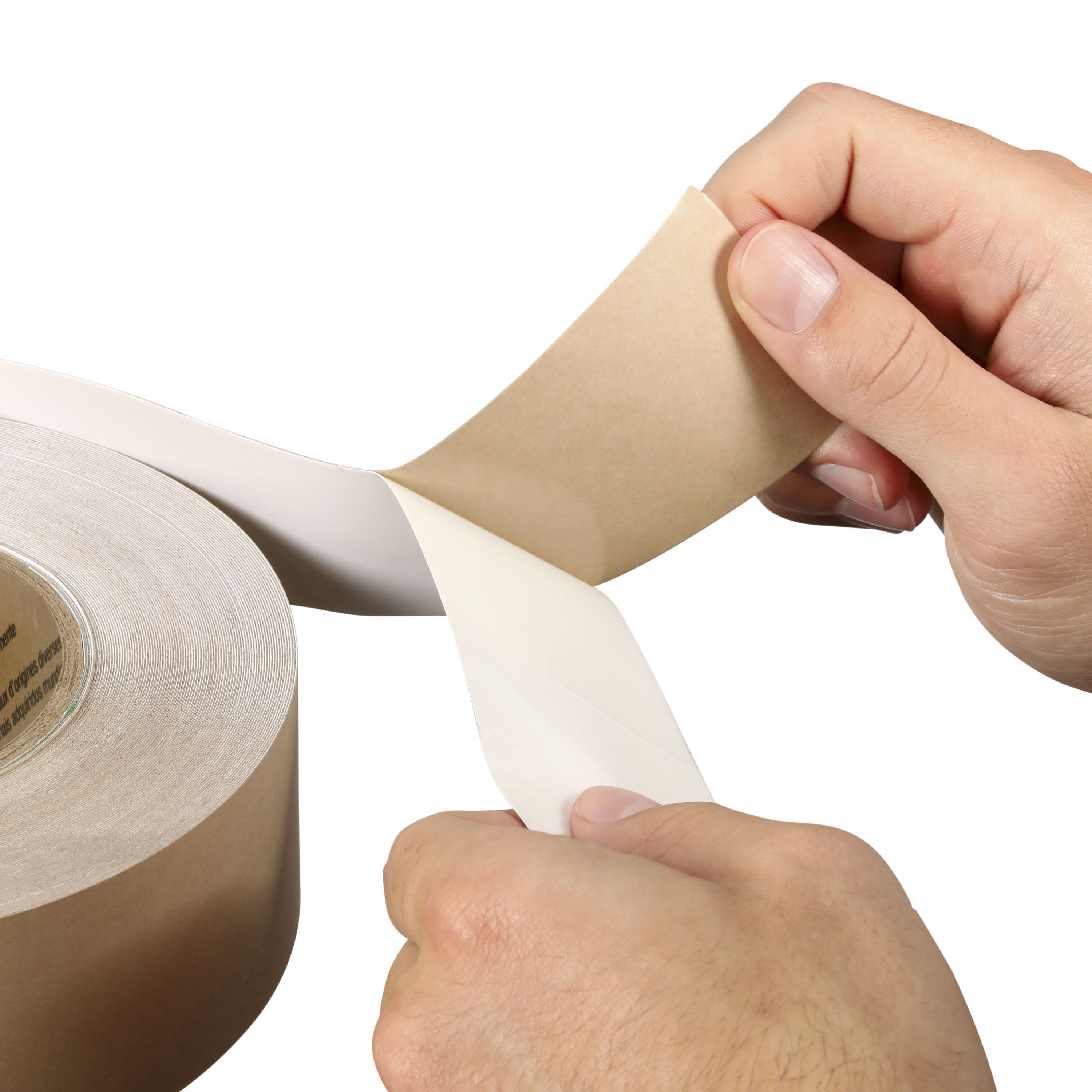

Primary Liner Thickness (Imperial): 6.0 Milli-inch (mil)
Primary Liner Thickness (Metric): 0.16
Product Color: Branco
Product Type: Fita de vedação

Attributes 10

Shelf Life: 24.0 Month

Attributes 11

Specifications Met: ASTM E2178
Substrate: Alta energia superficial, (400-1100 dynes/cm) Lisa Metal Metal nu Média a alta energia superficial, (42-50 dynes/cm) Média energia superficial, (38-39 dynes/cm) Pintura Plástico, fácil de colar (HSE) Plásticos (vinil flexível) Plásticos LSE Superfície pintada, fácil de colar (HSE) Superfícies ásperas Vidro
Tensile Strength (Imperial): 22.0
Tensile Strength (Metric): 385.0

Attributes 12

Total Tape Thickness without Liner (Imperial): 10.0 Milli-inch (mil)
Total Tape Thickness without Liner (Metric): 0.25

Packaging - Unit Of Use

Unit of Use (1) - Article Number: 00068060762702
Unit of Use (1) - Unit: ROL
Unit of Use (1) - Item Quantity: 1.0

Packaging - Base Unit

Base Unit (B) - Article Number: 00068060762702
Base Unit (B) - Base Unit: ROL
Base Unit (B) - Unit: ROL
Base Unit (B) - Item Quantity: 1.0
Base Unit (B) - Mapped From: Activity Unit
Base Unit (B) - Metric Cubic Dimension: 73725.15 CCM
Base Unit (B) - Metric Weight: 21060.02 G

Packaging - Shipper

Shipper (6) - Article Number: 50068060762707
Shipper (6) - Unit: CS
Shipper (6) - Article Number Print Indicator: true
Shipper (6) - Article Number Type Code: ITF
Shipper (6) - Item Quantity: 1.0

Packaging - Pallet

Pallet (8) - Unit: PAL
Pallet (8) - Item Quantity: 20.0
