3M™ Dual Lock™ Reclosable Fastener SJ3550CF is the convenient alternative to traditional fastening methods, such as screws, nuts or bolts. It is designed to deliver a durable, reclosable fastening solution which bonds to a variety of substrates including metals, glass and plastics such as acrylics, polycarbonate and ABS. This fastener gives the adhesive a black appearance.

Identification

3M ID: 7100279420
old 3M ID: UU011880133
Distribution Chain Material Status Code: 10
Division Name: Industrial Adhesives & Tapes
Commodity Class Code: 2790
Product Type: Sistema de fixação
Brand: Dual Lock™
Commodity Class Description: Foam Tape & Fasteners

Marketing Content

Product Name: Sistema de fixação desmontável 3M™ Dual Lock™ SJ3550CF, preto, 25 mm x 45.7 m, Tipo 250, 2 rolos/caixa
Description: 3M™ Dual Lock™ Reclosable Fastener SJ3550CF is the convenient alternative to traditional fastening methods, such as screws, nuts or bolts. It is designed to deliver a durable, reclosable fastening solution which bonds to a variety of substrates including metals, glass and plastics such as acrylics, polycarbonate and ABS. This fastener gives the adhesive a black appearance.

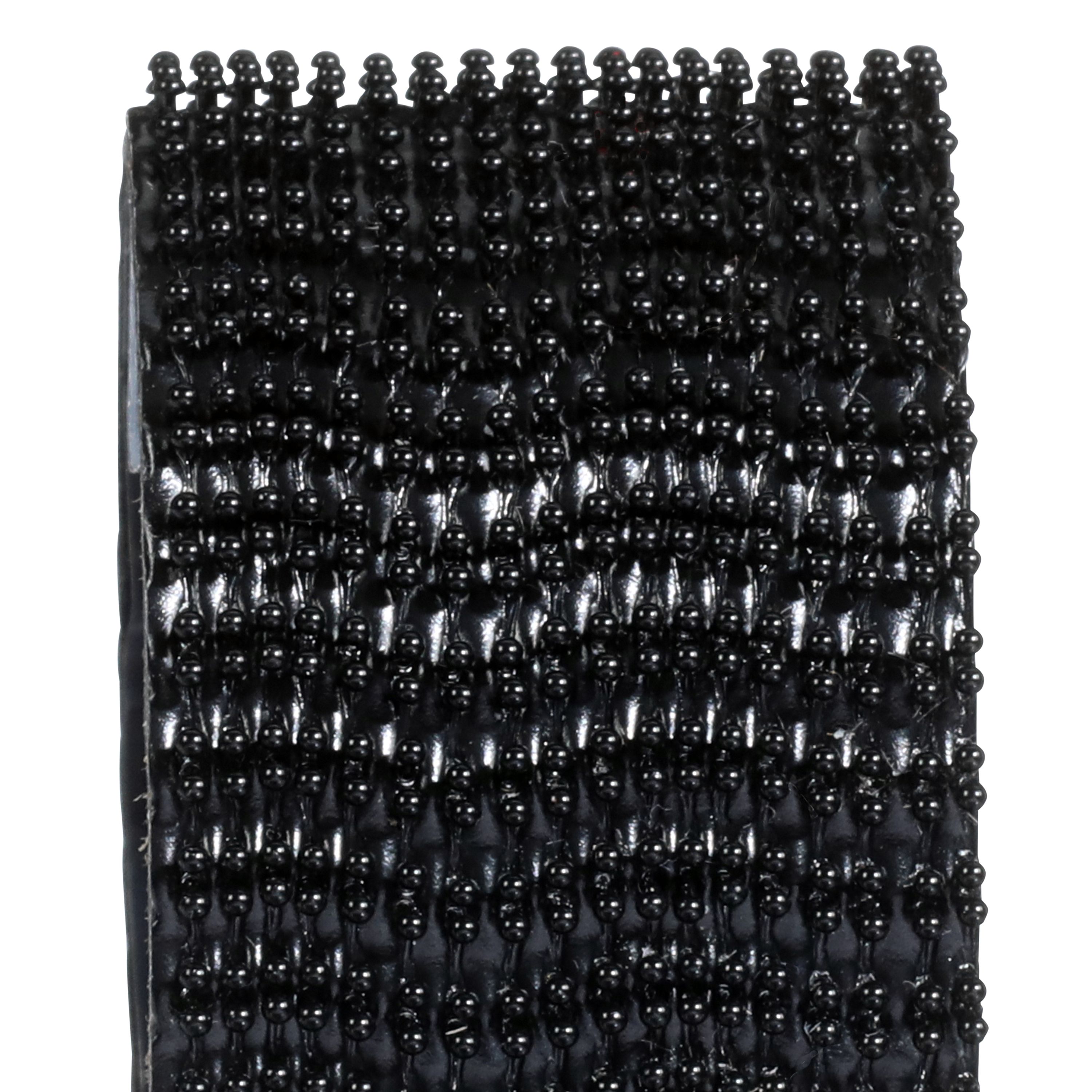

Long Description: Unlock Simplicity Durable and secure, 3M™ Dual Lock™ Reclosable Fastener SJ3550CF has exceptional strength through its interlocking mushroom-shaped heads (250 stem density per square inch), providing up to 5X the tensile strength of typical hook-and-loop products. We designed this fastener with a clear, acrylic, tape protected by a removable, film liner. This solid, pressure sensitive tape features a strong, durable bond that is heat, chemical and UV resistant. With 3M™ Dual Lock™ Reclosable Fastener SJ3550CF, there is no need for any drilling, screwing or sewing tools which makes for quick installation. Design Flexibility 3M™ Dual Lock™ Reclosable Fastener SJ3550CF consists of interlocking mushroom-shaped heads that easily slide over each other, allowing for positioning of parts before being snapped together. This fastening process creates a durable attachment and provides fast product assembly with great design flexibility. Our reclosable fasteners can also engage with different stem densities for varying levels of strength and system performance. 3M™ Dual Lock™ Reclosable Fasteners sound an audible snap when secure, which verifies closure of the attachment. To disengage, simply peel the pieces apart by hand. Our fasteners maintain their strength throughout multiple attachments and detachments. A lightweight alternative to metal fasteners, this product remains hidden beneath surfaces and does not interfere with the integrity of your material—providing aesthetic improvements and design flexibility. Hundreds of Reattachments in a Snap When two pieces of 3M™ Dual Lock™ Reclosable Fasteners mate, the stems flex and the mushroom heads slide past each other. After passing the opposing mating piece, the stems snap back into their original position and the opposing mushroom heads interlock. These fasteners can provide high tensile strength but can be opened by simply cleaving or peeling open the closure. This product is well suited for many indoor and outdoor applications where a high strength and versatile reclosable fastening system is required. Delivers Long-Lasting Performance Not all design requirements are easily satisfied, but you can simplify your attachments. When you need a strong, reliable, yet removable closure, 3M™ Dual Lock™ Reclosable Fasteners are the easy alternative to traditional fastening methods such as screws, nuts or bolts.

Benefits

• Black, interlocking mushroom-shaped heads (250 stem density per square inch) provide strong, reliable and durable fastening that can be opened and closed multiple times
• Mates with Type 170, Type 250 or Type 400 stem densities to provide different strength combinations
• Clear, acrylic, tape bonds well to a variety of substrates including metals, glass and plastics such as acrylics, polycarbonate and ABS
• Strong fastener secures with an audible snap, verifying closure
• An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance
• Features good temperature resistance of 104°C
• Best suited for indoor and outdoor use
Keywords: 3M, fixação desmontável, Dual Lock, SJ3550CF, sistema de fixação, fixadores reposicionáveis, fixação reutilizável, fixadores, resistência de temperatura, interior e exterior, instalação rápida, resistência química, resistência UV, flexibilidade de design, fixação oculta, estética, adesivo acrílico, alta resistência, fixadores de alta resistência, sem parafusos, sem furos, montagem de produtos, soluções de fixação, reengate rápido, diferentes densidades, reanexos múltiplos, fixadores de cogumelos, substituto para parafusos e porcas, aplicações comerciais, fixadores de plásticos, fixadores de metais, fixadores de vidro, automóvel, design e construção, eletrónica, fabrico, soluções comerciais, transportes, arquitetura e design. Reclosable Fastener reclosable fastening solution fastener tape 3m dual lock reclosable fastener

Technical Attributes

Overall Length (Metric): 46.0 m
Overall Width (Metric): 25.0 mm
Dangerous Goods Indicator: ZND
TDS Required: Não
Indoor/Outdoor: Interior/Exterior
EU Taric Code: 3926909790

Industry Standards

eCl@ss 10 classification group: 23330302
eCl@ss 11 classification group: 23330302
ETIM Class 10.0: EC010969
ETIM Class 8.0: EC010969
ETIM Class 9.0: EC010969

Attributes 1

Backing (Carrier) Material: Polypropylene

Attributes 5

Indoor/Outdoor: Interior/Exterior

Attributes 7

Maximum Operating Temperature (Celsius): 93.0
Maximum Operating Temperature (Fahrenheit): 200.0 Degree Fahrenheit

Attributes 9

Overall Length (Imperial): 50.306 yd
Overall Length (Metric): 46.0 m
Overall Width (Imperial): 0.98 in
Overall Width (Metric): 25.0 mm
Primary Liner: Clear Polyolefin
Primary Liner Color: Transparente
Primary Liner Thickness (Imperial): 0.08 mm
Primary Liner Thickness (Metric): 0.1
Product Form: Rolo
Product Type: Sistema de fixação

Packaging - Base Unit

Base Unit (B) - Article Number: 04064035047382
Base Unit (B) - Base Unit: ROL
Base Unit (B) - Unit: ROL
Base Unit (B) - Article Number Print Indicator: true
Base Unit (B) - Article Number Type Code: ITF
Base Unit (B) - Item Quantity: 1.0
Base Unit (B) - Mapped From: Activity Unit
Base Unit (B) - Metric Cubic Dimension: 8553.248 CCM
Base Unit (B) - Metric Height Dimension: 32.0 MM
Base Unit (B) - Metric Length Dimension: 517.0 MM
Base Unit (B) - Metric Width Dimension: 517.0 MM
Base Unit (B) - Metric Weight: 2.333 KG

Packaging - Consumer

Consumer (2) - Article Number: 04064035047382
Consumer (2) - Unit: ROL
Consumer (2) - Article Number Print Indicator: true
Consumer (2) - Article Number Type Code: ITF
Consumer (2) - Item Quantity: 1.0

Packaging - Shipper

Shipper (6) - Article Number: 04064035047399
Shipper (6) - Unit: CS
Shipper (6) - Article Number Print Indicator: true
Shipper (6) - Article Number Type Code: ITF
Shipper (6) - Item Quantity: 2.0

Packaging - Pallet

Pallet (8) - Article Number: 04064035047405
Pallet (8) - Unit: PAL
Pallet (8) - Item Quantity: 64.0
